Product Range

45+ categories of precision parts.

Rod ends, heim joints, spherical bearings, ball joints, suspension and steering components, chassis hardware and drivetrain parts — CNC-machined in-house in Ningbo, Shanghai and our affiliated Jiangsu production bases. Every item below can be quoted in inch or metric, standard or fully custom to your drawing.

Send a Drawing for Quote Jump to Spec Reference

Family 01

Rod Ends, Bearings & Joints

Rod ends (also called heim joints), spherical plain bearings, rebuildable flex joints, linkage rods and hydraulic cylinder clevis solutions for precise articulated motion.

XM & XF Rod Ends

Chromoly steel rod ends and heim joints with heavy-duty shank, self-lubricating PTFE liner and 4130 chromoly body.

4130 ChromolyPTFE LinedInch

JMX / JFX 3-Piece Rod Ends

Three-piece precision design, heat-treated 4130 chromoly, PTFE-lined version available.

3-PieceHeat TreatedCustomizable

AM & AF Aluminum Rod Ends

Loader slot design with self-lubricating nylon race and aircraft-grade aluminium body.

7075-T6Loader SlotLightweight

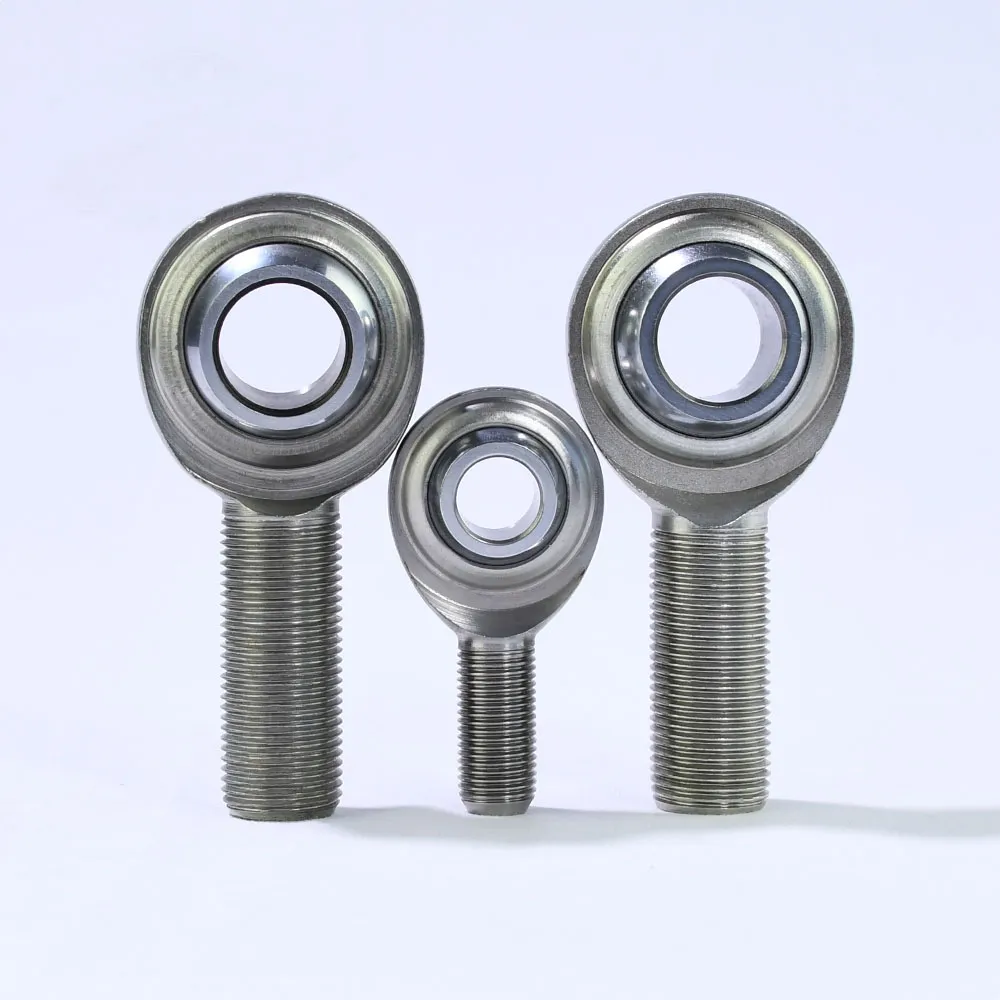

SCM Stainless Rod Ends

Stainless steel male rod ends for corrosion-exposed suspension, marine and offshore assemblies.

StainlessMarineCorrosion Resistant

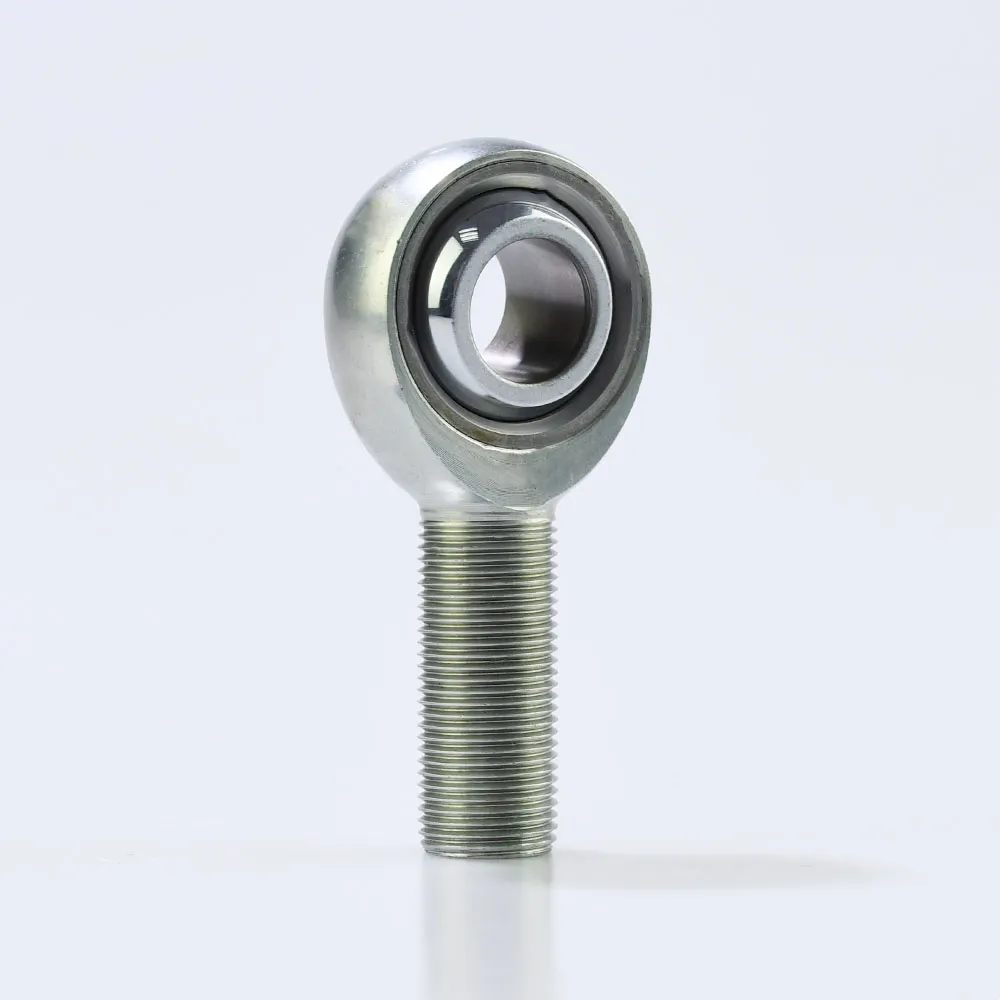

Metric Rod Ends

Metric-thread male and female rod ends from 10 mm to 20 mm bore and beyond, for European and global OEM programmes.

M10–M20+MetricOEM

COM-T Spherical Bearings

Metal-to-metal commercial series spherical plain bearings with optional PTFE, lubrication groove and hole; inch sizes.

Metal-to-MetalPTFE OptionalInch

Families 02 – 06

Suspension, steering, chassis & drivetrain.

Beyond rod ends, SYZ Machine machines the surrounding structure — the arms, joints, links, adapters and spacers that turn a set of bearings into a working suspension system.

Front Suspension

Control arms, ball joints, sway bar links, bushings, strut mounts and shock eyelets engineered for front-end stability.

Control arms · Ball joints · Bushings

Rear / Axle Suspension

Radius rods, track bars, lateral links, lift links, 4-link hardware, leaf-spring components and torque rods.

Track bars · 4-link · Torque rods

Steering

Tie rod ends, tie rod kits, rack ends, steering wheels and precision linkage components for responsive vehicle control.

Tie rod ends · Rack ends · Kits

Chassis & Mounting

Engine and cab mounts, mounting brackets, tube adapters, tube clamps and tube couplers for chassis fabrication.

Tube adapters · Brackets · Clamps

Drivetrain & Wheel End

CV axles, driveshaft U-joints, wheel spacers, drive clutches, king pins and wheel hub bearings for reliable power transfer.

Wheel spacers · U-joints · King pins

Spec Reference

Popular rod end sizes I quote most.

A typical cross-section of stock and short-lead-time rod ends. Load ratings below are the published static radial load figures for these part numbers; other sizes, materials and thread types are available on request.

Part Number	Bore	Thread	Body Material	Static Radial Load
XMR10 / XML10	0.6250 in	5/8-18	4130 Chromoly Steel	17,955 lbs
XMR12 / XML12	0.7500 in	3/4-16	4130 Chromoly Steel	28,081 lbs
XMR12-14 / XML12-14	0.7500 in	7/8-14	4130 Chromoly Steel	55,692 lbs
XMR14 / XML14	0.8750 in	7/8-14	4130 Chromoly Steel	45,051 lbs
XMR16 / XML16	1.0000 in	1 1/4-12	4130 Chromoly Steel	76,200 lbs
XMR20 / XML20	1.2500 in	1 1/4-12	4130 Chromoly Steel	79,728 lbs
AMR8 / AML8	0.5000 in	1/2-20	7075-T6 Aluminium	7,700 lbs
AMR8-10 / AML8-10	0.5000 in	5/8-18	7075-T6 Aluminium	15,000 lbs
AMR10-12 / AML10-12	0.6250 in	3/4-16	7075-T6 Aluminium	19,300 lbs
JMXR12(T) / JMXL12(T)	0.7500 in	3/4-16	4130 Chromoly Steel	28,081 lbs
SCMR8T / SCML8T	0.5000 in	1/2-20	Stainless Steel	7,352 lbs
SCMR12T / SCML12T	0.7500 in	3/4-16	Stainless Steel	11,595 lbs
JMXR10M / JMXL10M	10 mm	M10 × 1.5	4130 Chromoly Steel	50,225 N
JMXR12M / JMXL12M	12 mm	M12 × 1.75	4130 Chromoly Steel	44,487 N
JMXR16M / JMXL16M	16 mm	M16 × 2.0	4130 Chromoly Steel	76,290 N
JMXR20M / JMXL20M	20 mm	M20 × 1.5	4130 Chromoly Steel	120,210 N

R = right-hand thread, L = left-hand thread, (T) = PTFE-lined option. Load figures are the published static radial ratings for these series — tell me your dynamic load and duty cycle and I will confirm the right series with engineering.

Materials & Finishes

What we machine, and how we finish it.

Tell me the environment — salt, mud, heat, high cycle — and I will recommend the material and coating combination.

Chrome-moly steel4130 / 4340 — the standard for high-load rod ends, control arms and tubular assemblies.

Stainless steel303 / 304 / 316L / 17-4PH — for marine, offshore and corrosion-exposed hardware.

Aluminium6061-T6 / 7075-T6 — lightweight rod ends, spacers and bracketry.

Structural & carbon steelFor brackets, mounts, clevis bodies and chassis hardware.

Titanium alloysAvailable for weight-critical and high-corrosion applications.

Engineering plasticsBushings, spacers and polyurethane components for rebuildable joints.

Hard chrome plating

In-house or verified partner finishing.

Anodizing Type II / III

Standard and hard anodize for aluminium.

Zinc · Dacromet · Black oxide

Corrosion protection for steel parts.

Powder coating

Colour-matched finishes for visible parts.

Custom & OEM

Not in the catalogue? That is most of my work.

Send me a STEP file, a DXF, a PDF blueprint, or even a worn part in a photograph. Engineering reviews manufacturability and comes back with a real quote. Prototypes are typically ready in 4–6 weeks, and custom tooling fees are credited back on the bulk order.

Laser engraving on parts
Custom packaging, logo labels & barcodes
Complete kits: clevis forks, threaded rods, locknuts, brackets
Metric & imperial thread options

Next Step

Tell me what you need and I will price it.

Part number, drawing, sample or just an application description — all of them work. You will hear back within 24 hours.
